Product Description
Packaging of granular products such as candy, nuts, baked goods, snacks, screws, electronic components and other precision parts packaging
| Host technical parameters | |
Project | content |
Design running speed | The maximum running speed of air machine is 200 times / minute |
Packaging speed | For bag length <120mm, the maximum is 180 packets / min |
According to the material and bag length difference, the packaging speed will have a certain change The material of the packaging film also reflects the packaging speed | |

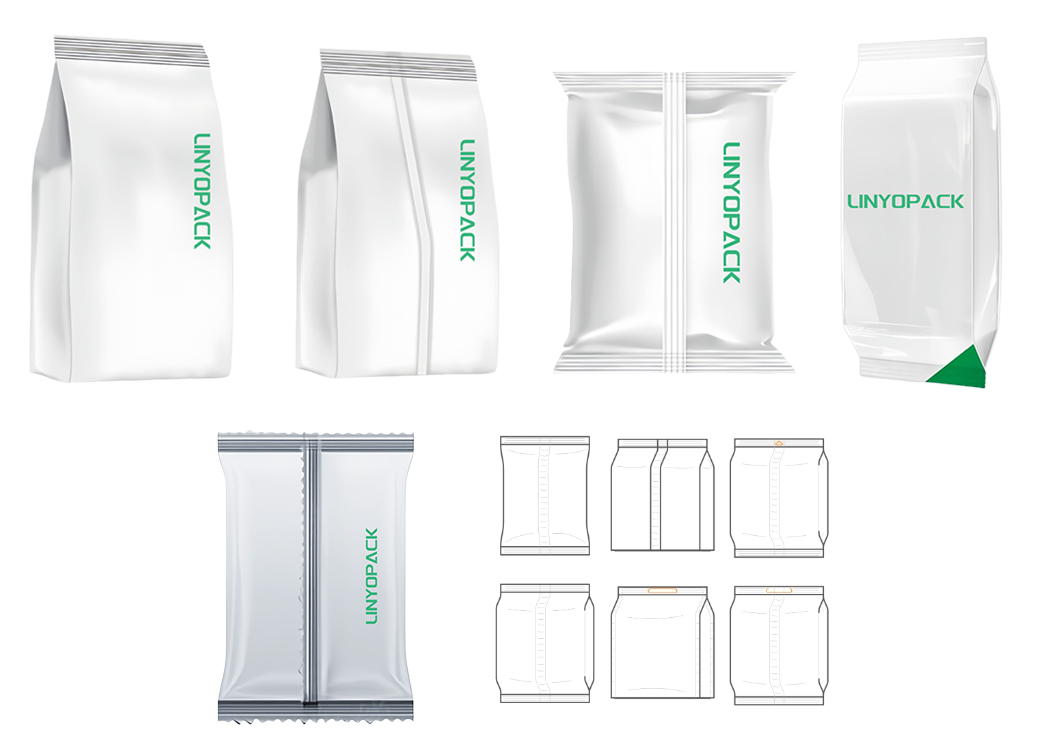

Bag making form | Packaging materials with rolling film, the machine automatic bag for the upper sealing, lower sealing and back sealing. |
Suitable film thickness | 0.04mm-0.1mm |
Applicable packaging materials | BOPP / CPP, PET / AL / PE and other heat composites |
Pressure demand | 0.6-0.8Mpa |
Gas consumption | 0.5m³/min |
Voltage demand | Three-phase four-wire system, 380V 50Hz |
Maximum packaging film width | 520mm |
Bag size | Width: 80-250mm, and length: 80-300mm |
Outline dimension | Length and width and height are 233015901900 |
Packing measurement | Length, width and height are 260019002200 |
Machine net weight | About 1,100 KG |
The power of the machine | 11.4KW |
Function Introduction: 1. The touch screen can adjust the bag length, temperature, tension, film shelf correction, speed, cylinder pressure, etc., and can save parameters for direct call. 2. The machine is equipped with the function of preventing empty bags. When the material is not weighed, it needs to be used with the weighing electronic scale. 3. The machine is equipped with the function of preventing clamp. If there is a material clamp phenomenon, it will automatically pause. 4. The machine is equipped with color mark detection sensor and film length encoder, automatic calculation and matching length according to the system, to ensure the size of the bag after forming. 5. the machine is equipped with vacuum belt pull film function, pull film skid correction function and automatic tension control function. 6. the reciprocating structure with crank structure, fast speed, is not easy to damage, long sustainable running time. 7. the whole machine adopts 6 axis full servo drive, send film tension axis, longitudinal seal axis, vacuum drawing film axis 1 axis 2, horizontal seal axis, reciprocating axis. 8. optional laser coding machine or hot transfer printing continuous ribbon coding machine. 9. according to the user needs of the more restructured bag form, pillow bag or vertical bag. 10. use industrial design appearance, increase door protection and alarm, to ensure the safety of operators. | |
| Electrical configuration and equipment material | |||
Product name: high-speed reciprocating vertical packaging machine | |||
Specification and model: VP52GS | |||
| Electrical configuration | |||
Name | Specifications | Brand | Country |
touch screen | 15.6 " capacitor screen 1920 * 1080 is shown And 16 million in true colors Metal shell + three prevention spraying + power supply isolation, safe and reliable | Step by the kinco | China |
The PLC motion controller | AX series motion control type | delta DELTA | Taiwan, China |
servo motor | The A2 series and the E3 series | delta DELTA | Taiwan, China |
servo drivers | The A2 series and the E3 series | delta DELTA | Taiwan, China |
air cylinder | SMC | Japan | |
electromagnetic valve | SMC | Japan | |
Electrical proportional valve | SMC | Japan | |
Air source filter and pressure regulating valve | SMC | Japan | |
air switch | Schneider | France | |
contactor | Schneider | France | |
low-voltage power supply | delta DELTA | Taiwan, China | |
solid state relay | Xin Ling C. Lin | China | |
thermostat | delta DELTA | Taiwan, China | |
encoder | OMRON | Japan | |
Color label sensor | Panasonnic | Japan | |
Planet reducer | In the strong virtue | China | |
DC deceleration motor | In the strong virtue | China | |
linear bearing | SAMICK | Korea | |
| Machine material | |||
Position | material quality | ||
Rack and protective door | SUS304 Stainless steel, PC plate | ||
components and parts | Aluminum, SUS304 stainless steel, steel | ||
Contact parts with the material | SUS304 Stainless steel | ||
